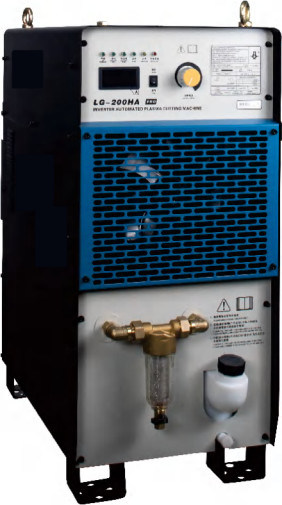

LG-125HA/200HA Pro Inverter Plasma Cutting Machine with 100% Duty Cycle and High-Lift Pump for Heavy Industry Use
Détails sur le produit:
| Lieu d'origine: | Chongqing, Chine |
| Nom de marque: | GENWELD |
| Numéro de modèle: | L6-125HA/LG-200HA Pro |
Conditions de paiement et expédition:
| Quantité de commande min: | 50 |
|---|---|
| Détails d'emballage: | 670×320×600/875×410×935 |
| Conditions de paiement: | T/T |
| Capacité d'approvisionnement: | 2000 / mois |
|
Détail Infomation |
|||
| Mettre en évidence: | 100% Duty Cycle Plasma Cutting Machine,Inverter Technology CNC Cutting Machine,High-Lift Pump Automated Cutting Machine |
||
|---|---|---|---|
Description de produit
| Main Features |
| ■ Special design for CNC cutting machine,with small volume,light weight |
| ■ High tech HF control technology which is separate from the power source to reduce the HF interference |
| ■ Gas control separate from the power source:shorter gas circuit,more stable gas pressure with good cutting quality |
| ■ 100%duty cycle for heavy industry use |
| ■ Cutting current up-slope technology to reduce consumption of wearing parts ■ With gas pressure detecting and displaying function ■ Gas check function for easier adjust of the air pressure |
| ■ With automatic protection function of over-heating,overvoltage,lackvoltage and default phase |
| ■ LG-125HA with constant pilot arc strike function,which is suitable for grid plate cutting |

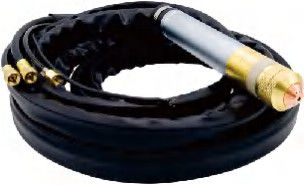

| ■ LG-200HA Pro with torch cooling system inside,which is with high-lift pump and high power radiator to reduce the loss of wearing parts |
| Product Application |
| ■ Suitable for cutting carbon steel,alloy steel and nonferrous steel |
 |
| Main Technical Parameters | |||
| ltem | Unit | Model | |
| LG-125HA | LG-200HA Pro | ||
| Input Power | V/Hz | 3~380±15%50/60 | |
| Rated Input Capacity | KVA | 21.7 | 52.3 |
| Rated Input Current | A | 33 | 78 |
| Rated Output Current/Voltage | A/V | 125/130 | 200/200 |
| Rated Open Circuit Voltage | V | 310 | 360 |
| Rated Duty Cycle | 100%(40℃) | ||
| Efficiency | 90% | 92% | |
| Power Factor | 0.82 | 0.83 | |
| Output Current Adjust Range | A | 30～125 | 40～200 |
| Arc Voltage Output Ratio | 1:1 | ||
| Arc Strike Mode | Non-Contact | ||
| Plasma Gas | Air | Air/N₂/O₂ | |
| Shielding Gas | Air/N₂ | ||
| Air Pressure | MPa | 0.4～0.6 | |
| Quality Cut Thickness(Carbon Steel) | mm | 25(580mm/min) | 32(500mm/min) |
| Insulation Grade | F | ||
| Power Source Cooling Mode | Air Cooling | ||
| Torch Cooling Mode | Air Cooling | Water Cooling | |
| Ingress Protection | 一 | IP21S | |
| Dimension(LxWxH) | mm | 670×320×600 | 875×410×935 |
| Arc Ignition Controller Net Weight | Kg | 4.5 | 7.8 |
| Power Source Net Weight | Kg | 49 | 116 |
