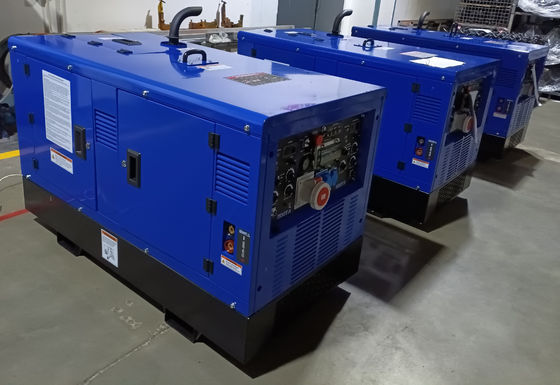

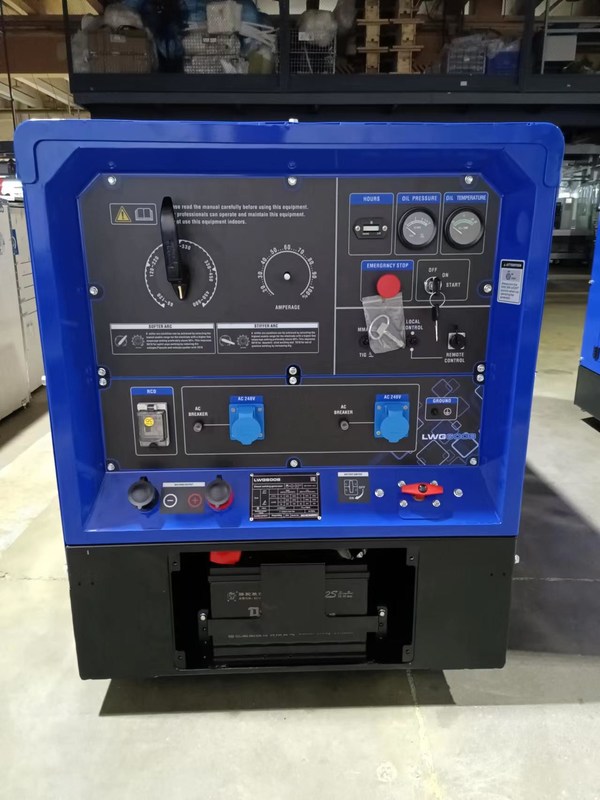

600A Diesel Pipeline Welding Machine with 100L Fuel Capacity and 4.5kW Auxiliary Power for Oil-rig Platforms
Détails sur le produit:
| Lieu d'origine: | Chongqing, Chine |
| Nom de marque: | GENWELD |
| Certification: | CE |
| Numéro de modèle: | LWG600B |
Conditions de paiement et expédition:
| Quantité de commande min: | 2 ensembles |
|---|---|
| Prix: | USD 15000-20000 SET |
| Détails d'emballage: | 1835 × 925 × 1135 mm |
| Délai de livraison: | 60 jours |
| Conditions de paiement: | T/T |
| Capacité d'approvisionnement: | 500 ensembles par mois |
|
Détail Infomation |
|||
| Modèle: | LWG600B | Processus de soudage: | MMA, Gougeage |
|---|---|---|---|
| Cycle de service: | 600A/44V/60% | Puissance de sortie auxiliaire: | CA monophasé 4,5 kW/230 V/60 Hz/50 Hz |
| MOTEUR: | Diesel 4 cylindres, refroidi par air | Capacité de carburant: | 100 litres |
| Poids net: | 1000KG | taille de l'emballage: | 1835 × 925 × 1135 mm |
| Mettre en évidence: | 600A Pipeline Welding Machine,100L Fuel Capacity Diesel Welder Generator,4.5kW Auxiliary Power Engine-driven Welder |
||
Description de produit
Product Description:
The Water Pipeline Welding Unit is an essential piece of pipe welding equipment designed for efficiently joining pipes in underground pipeline systems. This advanced Pipeline Welding Machine is equipped with a powerful generator output of AC230V/4Kw/Single Phase, ensuring reliable performance in various welding applications.
With an electrode code range of 2.5-10mm, this Pipeline Welding Machine offers versatility in welding different pipe sizes with precision and accuracy. The machine's engine features 4 cylinders and is air-cooled, providing optimal cooling efficiency during prolonged welding operations.
Operating on gasoline fuel, the Pipeline Welding Machine is a reliable and convenient choice for on-site welding tasks. Its large 100L fuel tank capacity ensures extended operation time without the need for frequent refueling, making it ideal for continuous pipeline welding projects.
Whether you are working on water pipeline installations, underground pipeline repairs, or other pipeline welding projects, this high-performance welding device offers the reliability and power needed to complete tasks efficiently.
Features:
- Product Name: Pipeline Welding Machine
- Generator Output: AC230V/4Kw/Single Phase
- Packing Size: 1860*850*1205mm
- Start Method: Recoil/Electric
- Engine: 4 Cylinders, Air-cooled
- Welding Material: Steel
Technical Parameters:
| Welding process | MMA, TIG, Gouging |
| Welding current range | DC 40-600A |
| Rated duty cycle | DC 600A/44V/60% |
| Auxiliary output power | AC 4.5kW/230V/Single Phase |
| Engine type | 4-cylinder, Air-cooling,natural aspirated |
| Engine power |
Max:42kW/1800rpm;Continue:38kW/1800rpm Max:35kW/1500rpm;Continue:32kW/1500rpm |
| Fuel capacity | Diesel 100L |
| Net weight | 1000kg |
| Insulation class | F |
| Packing size | 1835×925×1135mm |
Introduction:
LWG600B is a heavy-duty industrial engine-driven arc welding machine. It uses a 4-cylinder air-cooled diesel engine with strong power. It is mainly used for continuous high-current welding operations in water-deficient environments, especially suitable for high-intensity welding operations on offshore oil drilling platforms: Manual welding/TIG: 40A-600A, duty cycle: 600A/44V/60%; (Welding rod size: 1.5-10mm; Carbon arc gouging: Rated 9.5 mm (3/8 in.) carbon rod.
This product has excellent quality and reliable performance and is widely used in offshore oil drilling in Southeast Asia and oil and gas fields in the Middle East.
Specification List
|
Generator parameters |
Phase | Single | |
| Rated frequency (HZ) | 60 | ||
| Rated voltage (V) | 120 | 240 | |
| Rated power (KW) | 2 | 4 | |
| Power factor | 1 | ||
| Rated current (A) | 17 | 17 | |
|
Welding parameters |
No-load voltage (V) | DC90 | |
| Welding current range (A) | 65-600 | ||
| Rated voltage (V) | 44 | ||
| Rated load duration (%) | 60 | ||
| Applicable electrode diameter (mm) | 2.5-10 | ||
|
Engine |
Brand | Beinei | |
| Model | F4L912 | ||
| Types of | 4-cylinder,inline,naturally aspirated, air-cooled, 4-stroke | ||
| Bore*Stroke (mm) | 100*120 | ||
| Displacement (cc) | 3770CC | ||
| Compression ratio | 17:1 | ||
| Power | Max power:42KW/1800rpm ；rated power:38KW/1800rpm | ||
