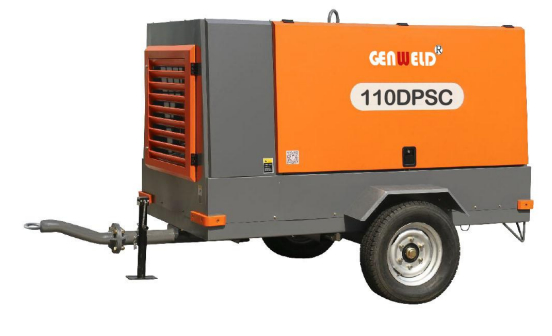

GENWELD 110DPSC Mobile Diesel Air Compressor with Yuchai 118KW Engine China Ⅳ Emission and 2 Wheel Configuration
Détails sur le produit:
| Lieu d'origine: | Chongqing, Chine |
| Nom de marque: | GENWELD |
| Numéro de modèle: | 110DPSC |
Conditions de paiement et expédition:
| Quantité de commande min: | 5 |
|---|---|
| Détails d'emballage: | 1700*900*1200mm |
| Délai de livraison: | 2-7 jours ouvrables |
| Conditions de paiement: | LC, T/T |
| Capacité d'approvisionnement: | 30 unités/mois |
|
Détail Infomation |
|||
| Mettre en évidence: | 2 Wheel Mobile Diesel Air Compressor,Yuchai 118KW Engine Portable Screw Compressor,China Ⅳ engine Diesel Portable Screw Compressor |
||
|---|---|---|---|
Description de produit
| Model | 110DPSC |
| China Ⅳ engine(standard) | Yuchai/118 KW |
| Diesel tank volume | 230 L |
| Air End | Two Stage Compression-2 wheel |
| Rated FAD | 12 m3/min |
| Rated Pressure | 18 bar |
| Weight | 2,350 kg |
| Type | 2 wheel |
| Dimensions(L×W×H) | 3,800×2,100×2,300 mm |
The Model 110DPSC mobile diesel air compressor is a high-performance, high-pressure solution tailored for medium-to-heavy-duty industrial and construction scenarios, where stable, powerful compressed air supply is non-negotiable. It stands out as a reliable workhorse, perfectly suited for deep mining operations, large-scale construction pile driving, high-pressure pipeline testing, and heavy pneumatic tool driving—delivering consistent performance to keep demanding workflows on track.
Powered by a Yuchai 118 KW engine that meets China Ⅳ emission standards, this compressor balances robust power output with environmental compliance, making it applicable even in emission-sensitive areas like urban core construction sites. The engine’s efficient design, paired with a massive 230 L diesel tank, ensures ultra-long continuous operation time, significantly reducing on-site refueling frequency and minimizing work interruptions—boosting overall project efficiency.
At the heart of its performance lies the advanced Two Stage Compression air end. Unlike single-stage alternatives, this dual-stage design compresses air in two sequential phases, enhancing compression efficiency, cutting energy loss, and enabling stable output of 18 bar high pressure (approximately 261 PSI)—a key advantage for driving high-demand pneumatic equipment such as deep-hole rock drills and high-pressure air hammers. Meanwhile, it maintains a strong 12 m³/min rated FAD (Free Air Delivery), easily supporting simultaneous operation of multiple heavy tools without compromising air supply stability.
Designed for on-site flexibility, the Model 110DPSC features a 2-wheel configuration that excels in narrow or confined spaces—such as mine tunnels or tight construction passages—where larger 4-wheel models may struggle to navigate. Its 2,350 kg net weight ensures stable operation during high-pressure workloads, while remaining compatible with most medium-duty transport vehicles for convenient transfer between project sites. The optimized dimensions (3,800×2,100×2,300 mm, L×W×H) strike a balance between accommodating large components (like the 230 L tank and two-stage air end) and fitting through standard construction site access roads and warehouse doorways, eliminating deployment challenges.
From heavy industrial tasks to large-scale construction projects, the Model 110DPSC mobile diesel air compressor combines power, efficiency, and mobility—delivering the high-pressure, continuous air supply needed to tackle tough jobs, reduce downtime, and drive project success.
